Selection of Hollow Rotary Platforms for Heavy-Duty Scenarios: From Overturning Moment to Anti-Overturning Design
What Are the Core Differences Between Heavy-Duty Selection and Conventional Selection?
In the conventional selection of hollow rotary platforms, technicians mainly focus on three core indicators: torque, positioning accuracy and inertia matching. As long as the parameters match the equipment requirements, the stable operation of the equipment can be basically guaranteed. However, there are essential differences between heavy-duty working conditions and conventional working conditions. Especially for two special installation scenarios of side mounting and lifting mounting, the core operational risk of equipment is not insufficient torque, but platform deformation, positioning deviation and even overall overturning failure caused by excessive overturning moment.
Based on a large number of on-site measured data and after-sales case analysis, most platform failures of heavy-duty automated equipment are not caused by insufficient motor power and torque output, but by insufficient structural rigidity of the platform under partial load and heavy-load working conditions, which cannot withstand the instantaneous overturning moment, resulting in irreversible turntable deformation, accuracy attenuation, operation jitter and offset. Therefore, on the basis of conventional parameters, the selection of heavy-duty hollow rotary platforms needs to focus on verifying three exclusive core indicators: allowable overturning moment, axial load capacity and overall structural rigidity, which are also the key basis for distinguishing heavy-duty special platforms from conventional platforms.
Calculation Method of Overturning Moment - Avoid Platform "Overturning"
The overturning moment is the core parameter for heavy-duty selection, which directly determines the operational stability of the platform under partial load conditions. For all heavy-duty scenarios with side mounting and lifting mounting, the overturning moment must be accurately calculated in advance to avoid selection errors.
Overturning Moment Calculation Formula: M = Load Weight (kg) × Eccentricity (mm)
To facilitate engineers' quick understanding and practical application, an example is given in combination with actual industrial scenarios: when a 200kg heavy workpiece is installed at an eccentric position 300mm away from the center of the hollow rotary platform turntable, the overturning moment generated by equipment operation is 200×300=60000kg·mm.
If this value exceeds the rated allowable overturning moment of the selected platform, the platform will continuously bear partial load stress beyond the bearing limit during continuous rotation, start-stop and speed change, resulting in irreversible turntable deformation, significant reduction of repeated positioning accuracy, operation jitter and offset. In severe cases, it will directly cause equipment shutdown and workpiece scrapping, affecting the operational efficiency of the entire production line. Therefore, the first step of heavy-duty selection is to accurately calculate the overturning moment to ensure that the value is strictly lower than the rated parameters of the platform.
Anti-Overturning Design - Core Technology of Heavy-Duty Platforms
The bearing structure of conventional hollow rotary platforms on the market is only adapted to conventional horizontal installation working conditions, mainly bearing axial and radial loads with uniform stress and stable working conditions. However, in the partial load scenarios of side mounting and lifting mounting, the turntable of the platform will be in a stress state of compression on one side and tension on the other side. Conventional platforms without reinforced structures are extremely prone to deformation and loosening due to stress concentration, and cannot meet the needs of heavy-duty production.
After years of in-depth research in the field of heavy-duty transmission, Dongguan Zhuochuang has optimized and iterated according to industry pain points. Its ZCTZ heavy-duty series and ZCTJ reinforced series hollow rotary platforms are equipped with core exclusive anti-overturning technology - an anti-overturning stable ring built in the middle hole of the turntable, solving the problem of heavy-load partial load overturning from the structural root.
This innovative structure can effectively shorten the force transmission arm, change the force transmission path of the platform, disperse the single-point concentrated stress to the entire turntable stress surface, greatly improve the upper limit of the platform's overturning moment bearing capacity, and fully adapt to harsh working conditions such as side mounting, lifting mounting and eccentric heavy load. Compared with conventional platforms, the ZCTZ heavy-duty series has been greatly upgraded in anti-deformation ability, operational stability and service life, perfectly adapting to various heavy-duty automated production scenarios.

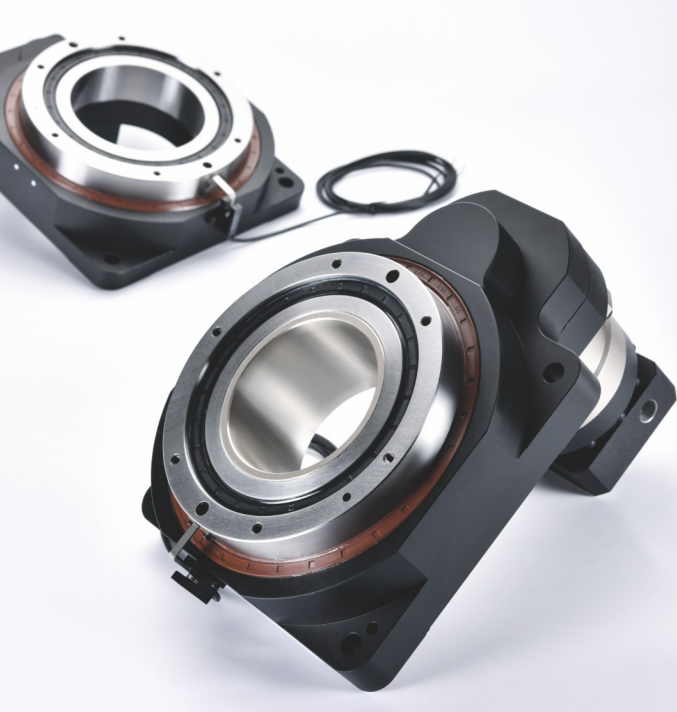

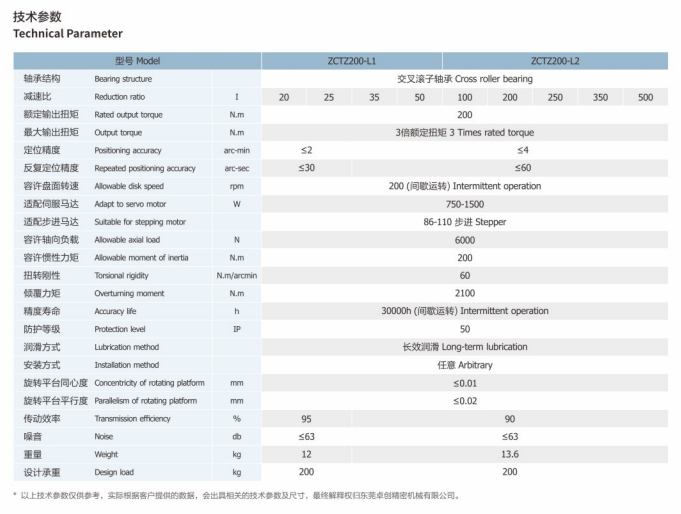

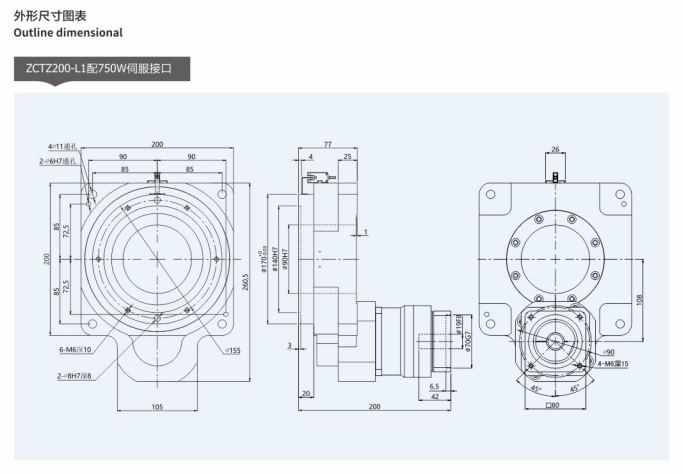

Technical Parameters and Applicable Scenarios of ZCTZ Series
The Zhuochuang ZCTZ heavy-duty hollow rotary platform is a special transmission component developed exclusively for heavy-duty automated equipment. Its core parameters meet high-end industry standards, with outstanding advantages in bearing capacity, structural rigidity and anti-overturning performance. The core product features are as follows:
1. Super large hollow aperture: The diameter of the middle hole can reach more than 90mm, meeting the penetration needs of large-size cables and pipelines, and adapting to the wiring layout of complex equipment;
2. Super strong bearing capacity: The maximum static load capacity can reach 1 ton, which can stably adapt to the heavy-load working conditions of various heavy workpieces and fixtures;
3. Wide working condition adaptability: With exclusive anti-overturning structure, it is mainly used for heavy load, side mounting and large overturning moment working conditions, solving harsh scenarios that cannot be adapted by conventional platforms;
4. High torque output: Adopting multi-stage precision gear transmission structure with reasonable transmission ratio and low power loss, which can greatly increase the equipment output torque and meet the needs of heavy-load start-stop and variable-speed operation.
Verified by a large number of industrial scenarios, the ZCTZ series heavy-duty hollow rotary platform is typically applied in automotive welding production line rotary worktables, rotary positioning mechanisms of heavy precision detection equipment, indexing devices for large mechanical workpiece processing, heavy-duty rotary conveying platforms for logistics warehousing and other heavy-duty automated scenarios.
Selection Summary - Three-Step Confirmation Method for Heavy-Duty Scenarios
For complex and variable heavy-duty installation working conditions, Zhuochuang has summarized a simple, efficient and directly applicable three-step selection method for heavy-duty scenarios to help engineers avoid selection misunderstandings and accurately match equipment needs:
Step 1: Calculate torque parameters. Accurately measure the equipment load weight and workpiece eccentricity, substitute into the formula to calculate the overturning moment, and ensure that the calculated value is strictly less than the rated allowable overturning moment of the platform, eliminating the risk of overturning and deformation from the source.
Step 2: Confirm the installation method. Distinguish three working conditions: horizontal installation, side installation and lifting installation. For side installation and lifting installation scenarios, priority should be given to heavy-duty special platforms with anti-overturning stable rings, and conventional platforms cannot be used as substitutes.

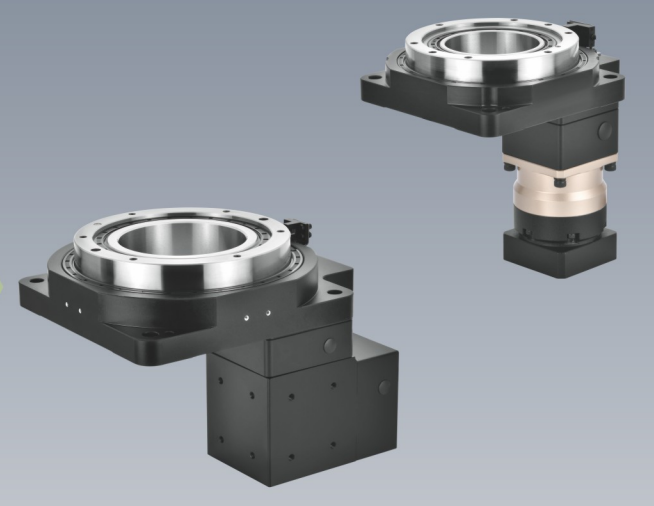

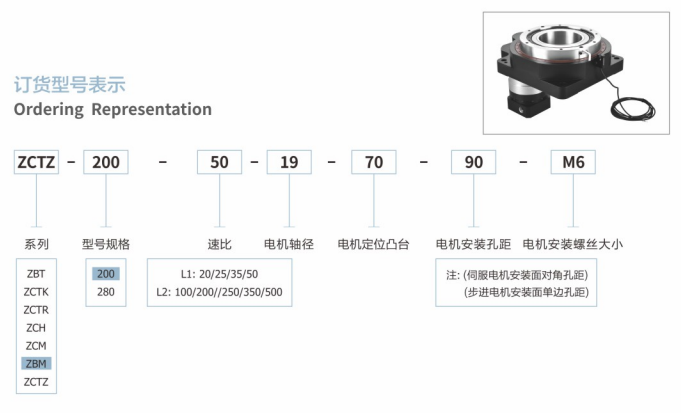

Step 3: Match model parameters. Match the ZCTZ series models with corresponding specifications and speed ratios according to the equipment turntable size, operating speed and speed ratio requirements to ensure all-round adaptation of accuracy, torque and stability.
For complex scenarios such as ultra-large load, special eccentric working conditions and customized installation requirements, there is no need for blind selection. You can directly contact Zhuochuang's professional technical consultants to obtain one-stop exclusive selection solutions to ensure stable and efficient operation of equipment.
