Description

——

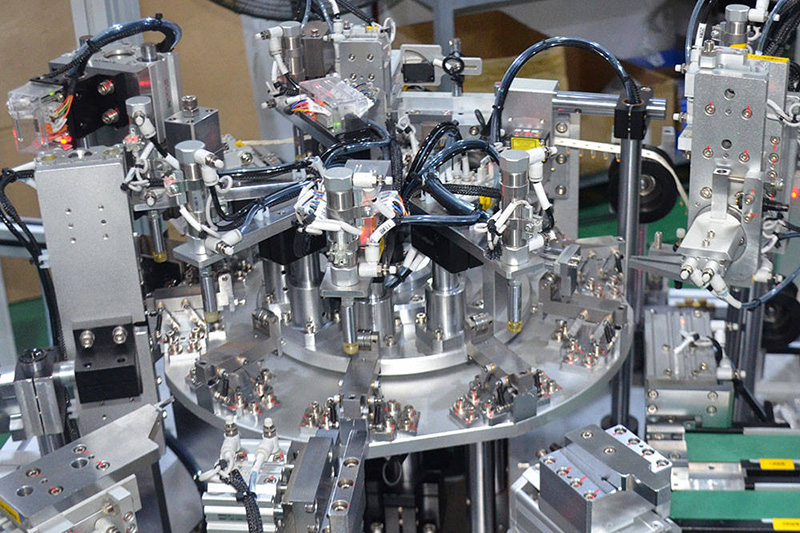

Industrial machinery and equipment refers to mechanical equipment that has a certain mechanical structure and can complete certain production and processing functions driven by a certain power. Assembled from multiple parts, driven by one or more power sources, it is an automated mechanical device that can complete functions or effects such as production, processing, and operation within a certain period of time. As a high-precision, high-load-bearing motion control device, the hollow rotary table is widely used in industrial automation equipment to rotate and position workpieces to achieve precise processing and assembly.

The core part of the hollow rotating platform is the hollow structure bearing and the servo motor. The hollow structure bearing is hollow inside, so that the optical fiber, cable, etc. can be transmitted through the axial channel while the platform is rotating. At the same time, the hollow structure bearing can bear a large load, ensuring the stability and load capacity of the platform. The servo motor realizes the precise control of the movement by controlling the rotation angle and speed of the rotating platform.

Advantages

——

Direct connection: The workbench mechanical arm that needs to be installed can be directly installed on the rotating platform. Compared with the use of mechanical parts such as pulleys, the hollow rotating platform can reduce the time and cost of mechanical design, parts allocation, and belt state adjustment. A rotating shaft in a precision alignment mechanism.

High positioning without gear: no backlash, positioning accuracy is less than or equal to 1MIN, repeat positioning accuracy can reach plus or minus 5 arc seconds.

Large-diameter hollow structure: In a complex environment, wiring and piping are more convenient and concise. The high-rigidity cross-bevel roller bearing and the rotating platform surface present an integrated design, which can withstand large inertia of the disc device. The overall matching step Into the motor and drive.
