Description

——

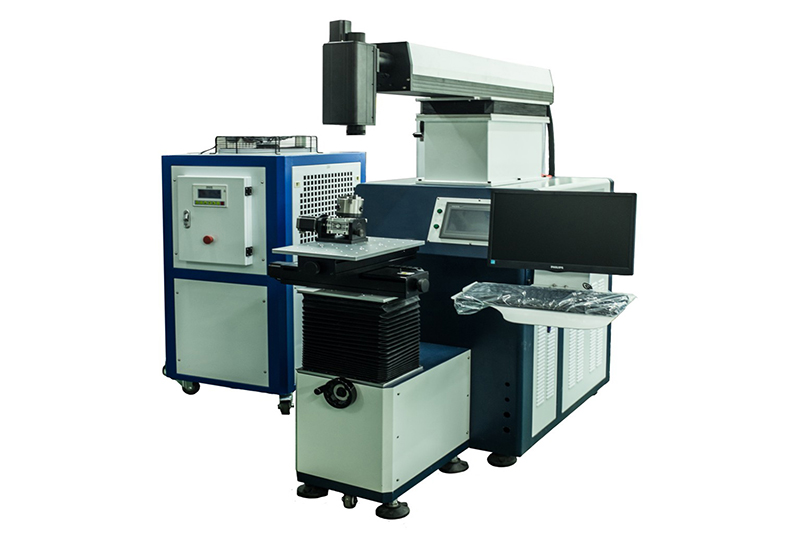

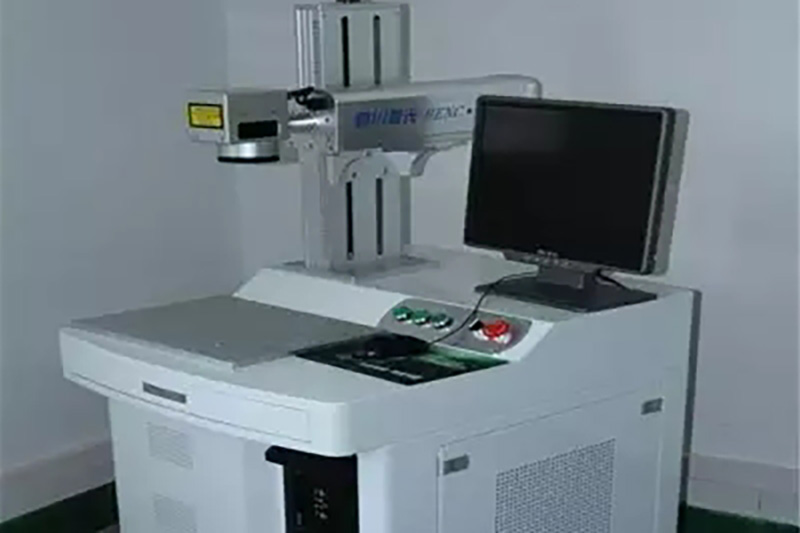

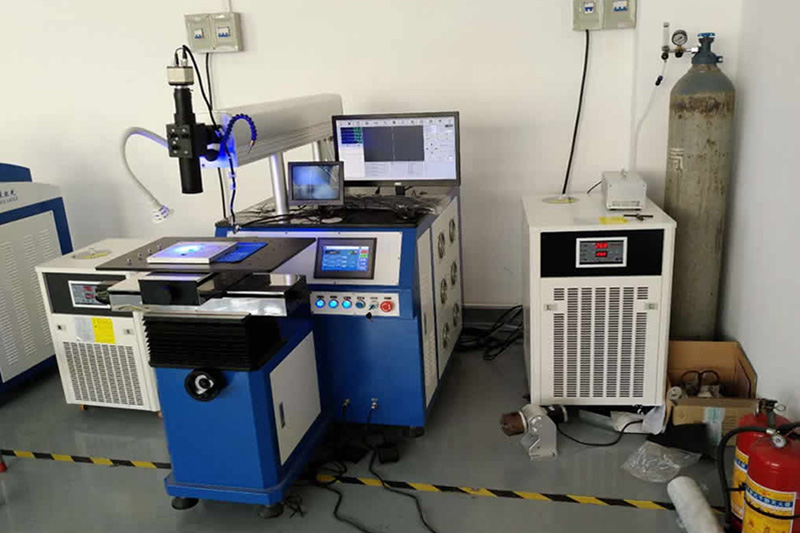

With its advantages of high precision, fast speed and good processing effect, laser processing technology is gradually realizing the replacement of traditional processing technology, and has become one of the high and new technologies vigorously supported and promoted in our country. The hollow rotating platform is a new type of reducer product, which has the advantages of high precision, simple installation, and light size. It is very suitable for use in laser welding, marking, and working conditions that require rotation and flipping.

Like the traditional laser industry that requires rotation and flipping, many motors or reducers are used to directly carry the load, which is only suitable for occasions where the load is extremely light and the accuracy is not high. However, the hollow rotary platform can directly carry the load due to the use of cross roller bearings. For example, installing a chuck, or dividing into multiple stations, or installing a swing arm for angle control, should be because the axial force, radial force, and anti-overturning force it carries are large.

Advantages

——

High rigidity: The hollow rotating platform is equipped with cross roller bearings, which can withstand large axial and axial forces, making the overall rigidity of the platform greater.

High rotation accuracy: After the rotary platform is assembled, the outer diameter and end face of the outer disc are ground again with the cross roller bearing of the platform as the center of rotation to ensure the coaxiality, parallelism and other behavioral tolerances of the turntable.

Large torque, low backlash: The rotary platform adopts planetary deceleration to increase the output torque, the reduction ratio is from 1 to 600, and the output torque range is large, which can meet various torque requirements.
