How Can Customized Hollow Rotary Platforms and Planetary Gearboxes Help Upgrade Production Lines?

In recent years, during automation upgrades and equipment R&D, many technical managers and integrators have frequently encountered a thorny problem: even when the design concept is sound, during implementation, they are often forced to modify the entire machine’s structure—or even sacrifice the equipment’s original compactness—due to mismatches in the dimensions, flange interfaces, or gear ratios of standard transmission components.

This kind of “forcing a square peg into a round hole” compromise not only extends the R&D cycle but also inadvertently increases manufacturing costs. In fact, with the improvement of domestic precision transmission manufacturing capabilities, “customization on demand” is no longer an unattainable goal. For core components—such as hollow rotary platforms and planetary gearheads—support for in-depth customization is becoming a powerful tool for addressing complex operating conditions.

Why Don’t Standard Components Work for Every Application Anymore?

In real-world factory environments—whether for 3C assembly lines, lithium-ion battery coating equipment, or custom automated testing stations—space is often at a premium.

⚬ Cable Tangles and Space Constraints: The solid-shaft design of traditional indexing tables or standard gear reducers makes routing air hoses and electrical wires exceptionally difficult, and interference is likely to occur during equipment operation.

⚬ Poor Motor Compatibility: With so many brands of servo and stepper motors on the market, the input flanges of standard gearheads often only match specific models. Switching to a different motor brand requires redrawing blueprints and adding adapter plates.

⚬ Incompatibility with Harsh Environments: In high-temperature, high-dust environments, or in precision positioning scenarios requiring minimal backlash, off-the-shelf standard components struggle to maintain long-term, stable accuracy.

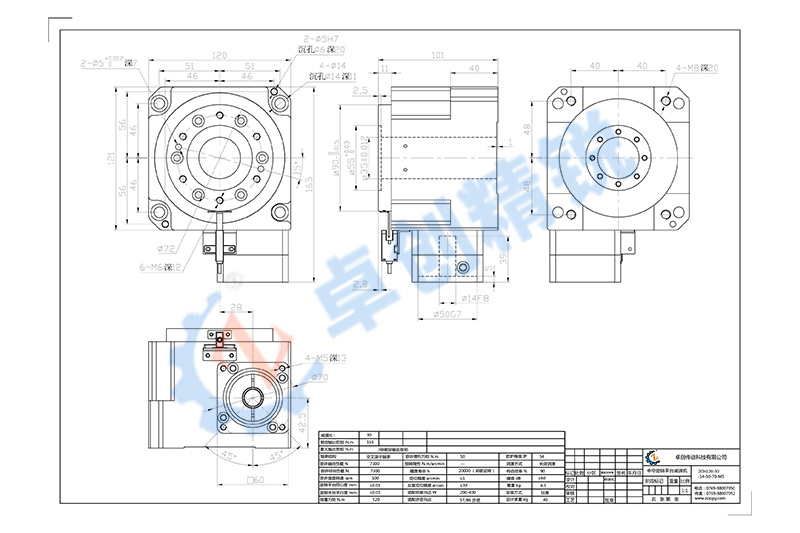

Custom Hollow Rotating Platform: The “Structural Master” That Simplifies Complexity

The greatest appeal of the hollow rotating platform lies in its large-diameter hollow structure. Through customization, this advantage can be amplified:

1. More Flexible Cable Routing: Hollow shafts with specific inner diameters can be customized according to the customer’s actual cable routing needs, completely resolving the pain point of multiple air hoses and cables becoming tangled during operation, resulting in a cleaner equipment appearance.

2. Optimized Direct-Mount Design: The platform comes equipped with heavy-duty cross-roller bearings, allowing workpieces to be clamped directly onto the platform. Custom flanges ensure seamless compatibility with any brand of servo motor you specify, eliminating intermediate components such as couplings and directly enhancing the system’s rigidity and response speed.

3. Balance Between Gear Ratio and Precision: Based on the actual cycle time requirements of the production line, internal gear parameters can be flexibly adjusted to provide a reduction ratio and repeatability that align with actual operating conditions. This prevents you from wasting money on products with excessive performance while ensuring precision does not become a bottleneck for the production line.

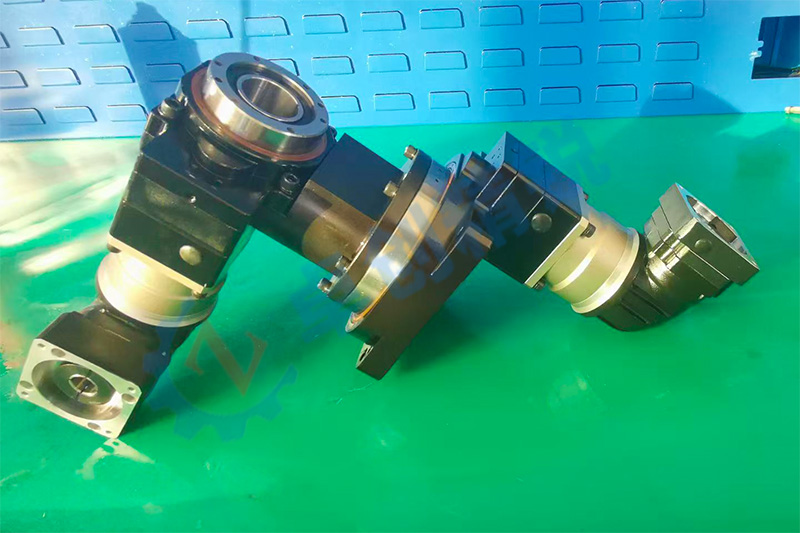

Customized Planetary Gearboxes: High Torque in a Compact Package

As the “muscles” of automation equipment, customized planetary gearboxes often resolve many critical installation and output challenges:

1. Non-standard Customization of Dimensions and Output Shafts: When faced with irregular installation spaces, you can opt for customized extended output shafts, special keyways, or even right-angle/dual-output shaft configurations—ensuring the gearbox adapts to your equipment, rather than the equipment having to accommodate the gearbox.

2. Targeted Reinforcement for Complex Operating Conditions: For demanding conditions such as continuous heavy loads and frequent forward/reverse cycling, we customize high-strength gear materials and special lubricants; for specific workshop environments, we can provide custom housings with reinforced seals and anti-corrosion treatments.

3. Flexible Interface Matching: Input flanges can be machined according to your drawings, ensuring precise alignment and quick installation regardless of whether you use mainstream Japanese, Taiwanese, or domestic motors.

Many business owners’ first reaction upon hearing “non-standard customization” is that it’s expensive and time-consuming. However, this is actually a misconception. From the perspective of the overall project lifecycle, selecting hollow rotary platforms and planetary gearboxes that support customization saves on labor costs associated with repeatedly revising structural drawings, reduces procurement costs for unnecessary transitional parts, and lowers the difficulty of equipment maintenance and assembly in the long run. Far from increasing costs, this is actually a form of hidden “cost reduction and efficiency improvement.”

Mature transmission component manufacturers typically possess modular design capabilities and flexible production lines. As long as there is thorough technical coordination in the early stages and prompt confirmation of drawings, the lead time for custom prototypes and mass production can be kept within a very reasonable range.

In today’s increasingly competitive automation landscape, the competitive edge of equipment often lies in every detail of its transmission system. If your current production line upgrade is being held back by transmission component compatibility issues, consider turning to customized solutions. Provide us with your technical specifications and equipment operating conditions—a tailor-made transmission solution could deliver a quantum leap in your equipment’s performance.Email:473946087@qq.com.
