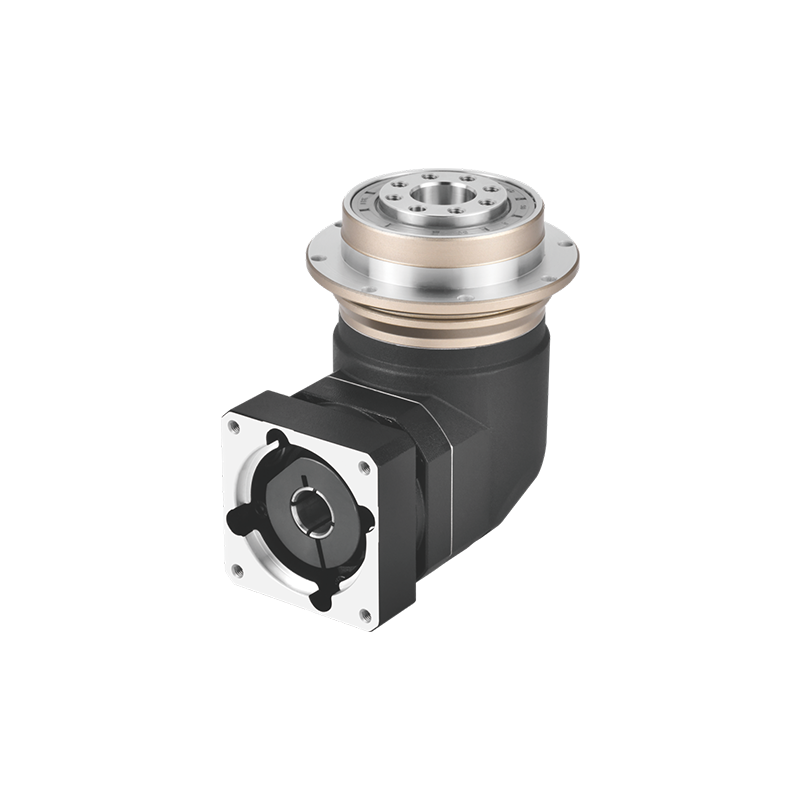

ZCDR Disc Precision Planetary Reducer
  • ZCDR Disc Precision Planetary Reducer

ZCDR Disc Precision Planetary Reducer

  • Maximum output torque ：2.5 Times rated torque
  • Precision clearance：≤2 arc-min
  • Operating temperature：-10℃～+90℃
Helical gear double support structure, large bearing torque, high precision, low noise, disc output can directly fix the load on the disc surface for transmission, easy installation, suitable for various brands of servo motors and stepping motors.
Contact WeChat

+86-18928272690
Inquiry
Home >Product > ZCDR Disc Precision Planetary Reducer
Ordering Representation Parameters Dimension Download
