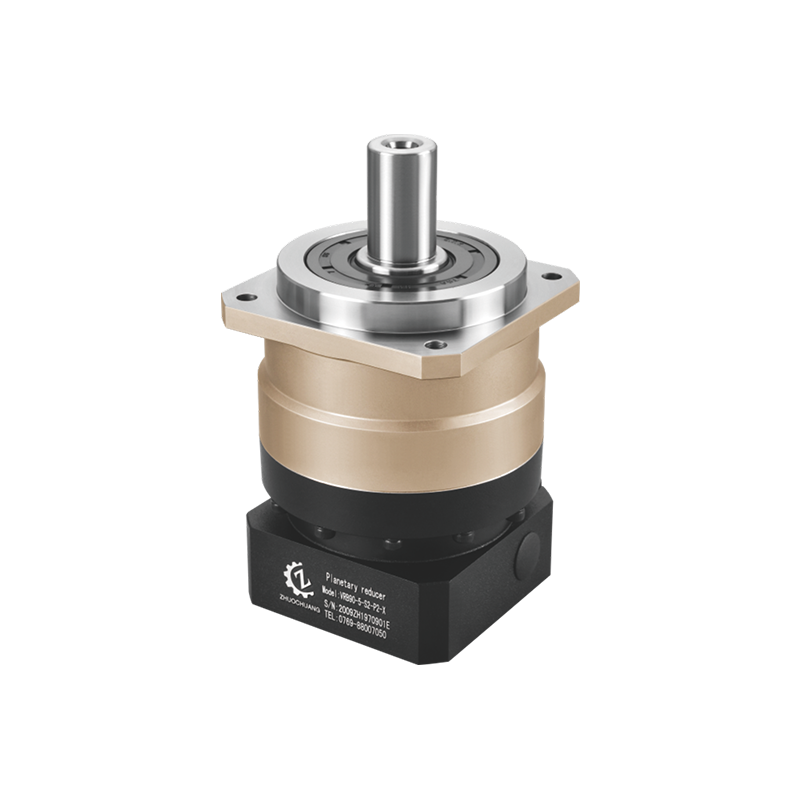

VRB Precision Planetary Reducer

Maximum output torque ：2.5 Times rated torque
Helical gear precision clearance：≤2 arc-min
Operating temperature：-10℃～+90℃

Helical gear double support structure design, large load-bearing torque, high precision, low noise, modular mass production, high cost performance, and a large number of stocks. Adapt to various brands of servo motors and stepper motors

Contact WeChat

+86-18928272690

Inquiry

Home >Product > VRB Precision Planetary Reducer

Ordering Representation Parameters Dimension Download

Product detailsPosition：Home >Products > Product details

Ordering Representation

Parameters

Dimension

Download

VRB60-L1(8X35-38.1-47.14-M4)-Model.pdf VRB60-L1(14X35-50-70-M4)-Model.pdf VRB90-L1(14X47-73-98.43-M5)-Model.pdf VRB90-L1(19X47-70-90-M6)-Model.pdf VRB120-L1(19X53-70-90-M6)-Model.pdf VRB120-L1(22X60-110-145-M8)-Model.pdf VRB140-L1(24X72-110-145-M8)-Model.pdf VRB180-L1(35X81-114.3-200-M12)开键10-Model.pdf

VRB Precision Planetary Reducer

Ordering Representation

Parameters

Dimension

Download
