ZCD Disc Precision Planetary Reducer

Maximum output torque ：2.5 Times rated torque
Precision clearance：≤2 arc-min
Operating temperature：-10℃～+90℃

Helical gear double support structure, large bearing torque, high precision, low noise, disc output can directly fix the load on the disc surface for transmission, easy installation, suitable for various brands of servo motors and stepping motors.

Contact WeChat

+86-18928272690

Inquiry

Home >Product > ZCD Disc Precision Planetary Reducer

Ordering Representation Parameters Dimension Download

Product detailsPosition：Home >Products > Product details

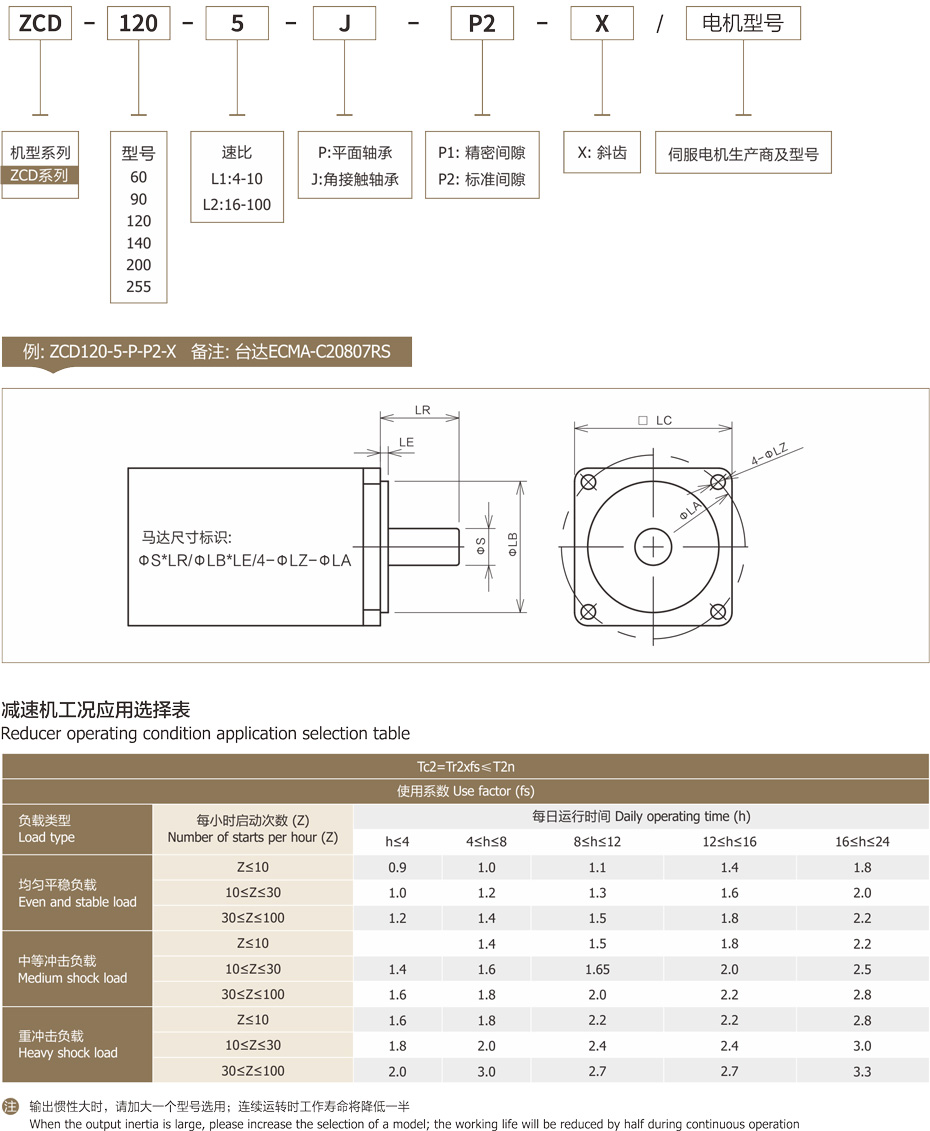

Ordering Representation

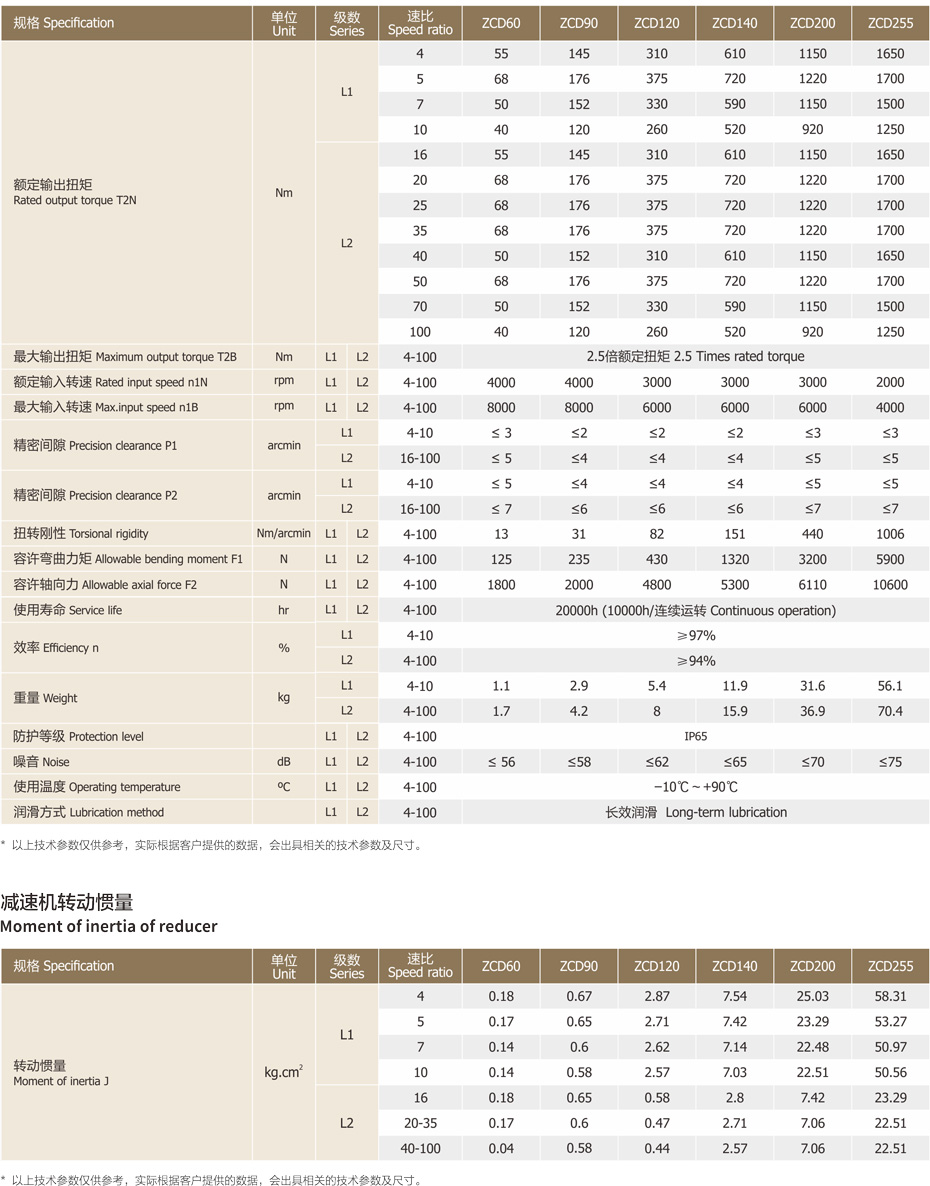

Parameters

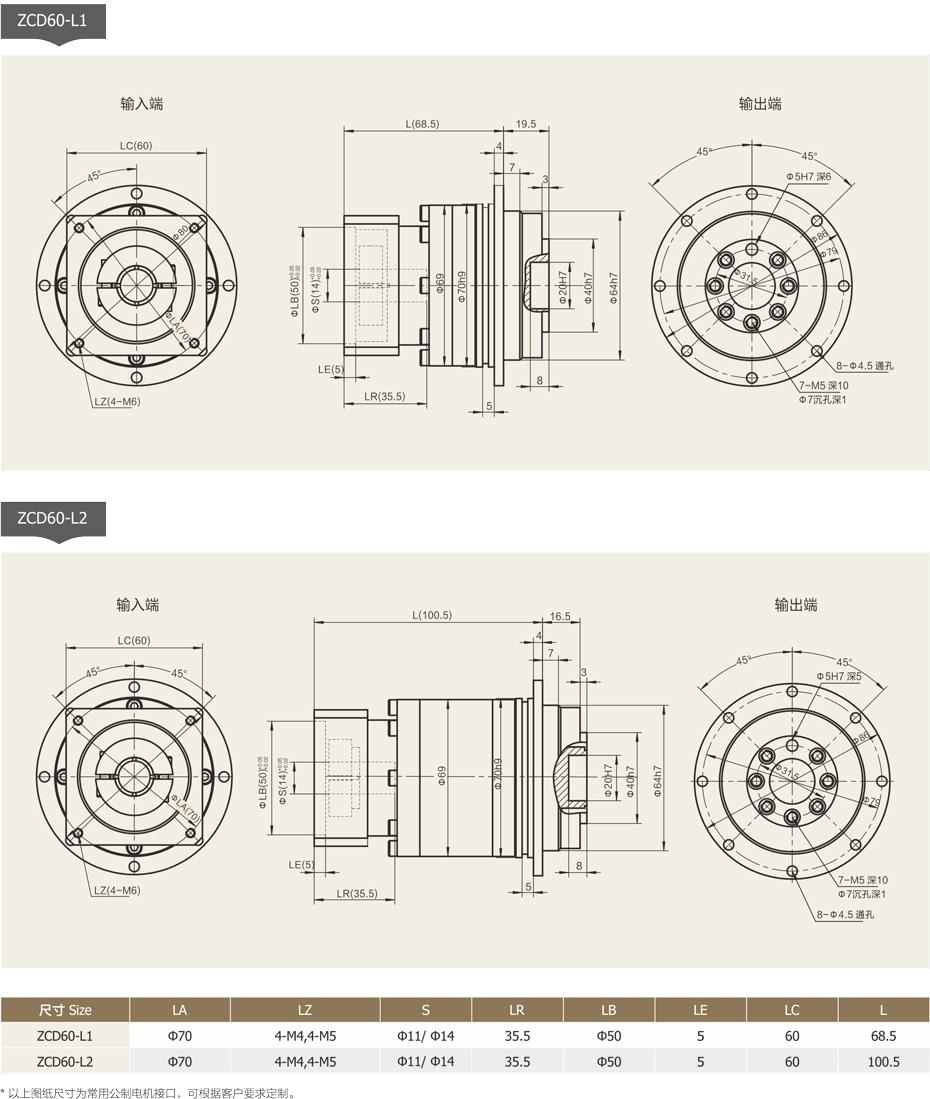

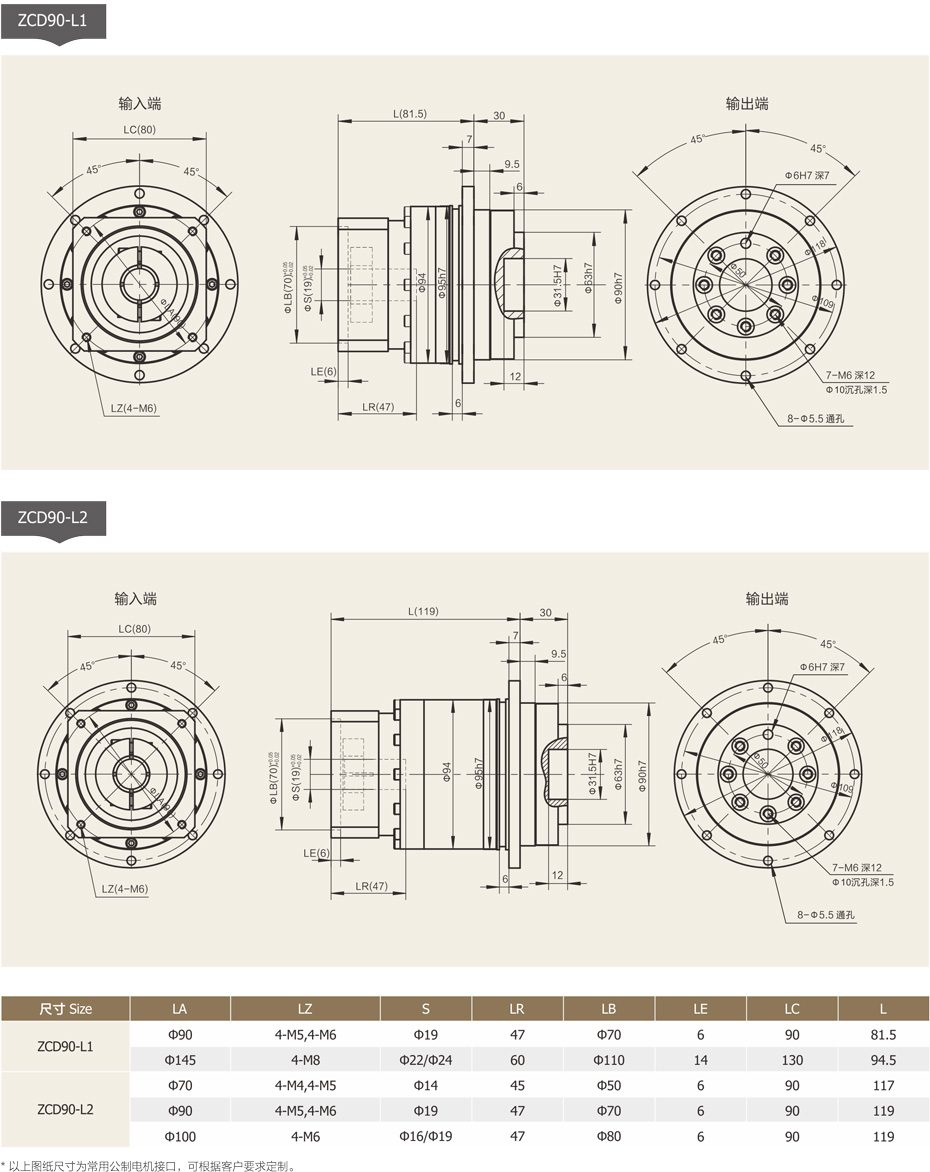

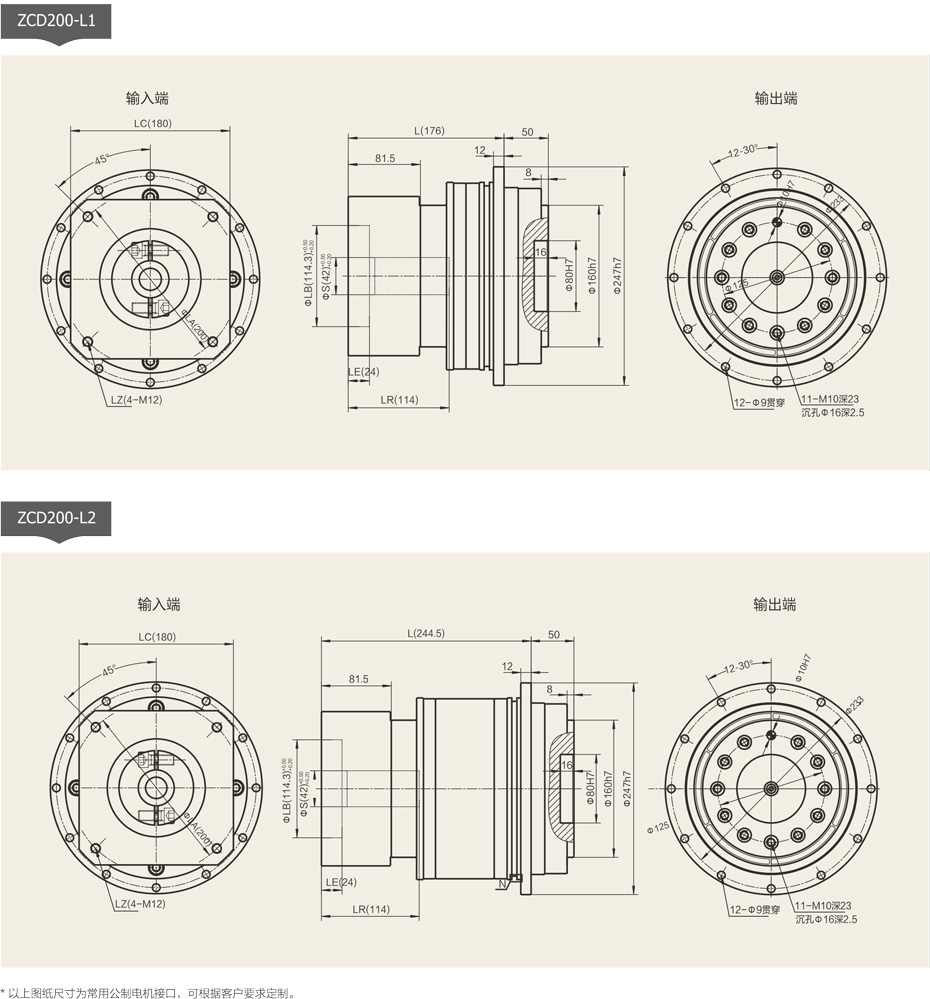

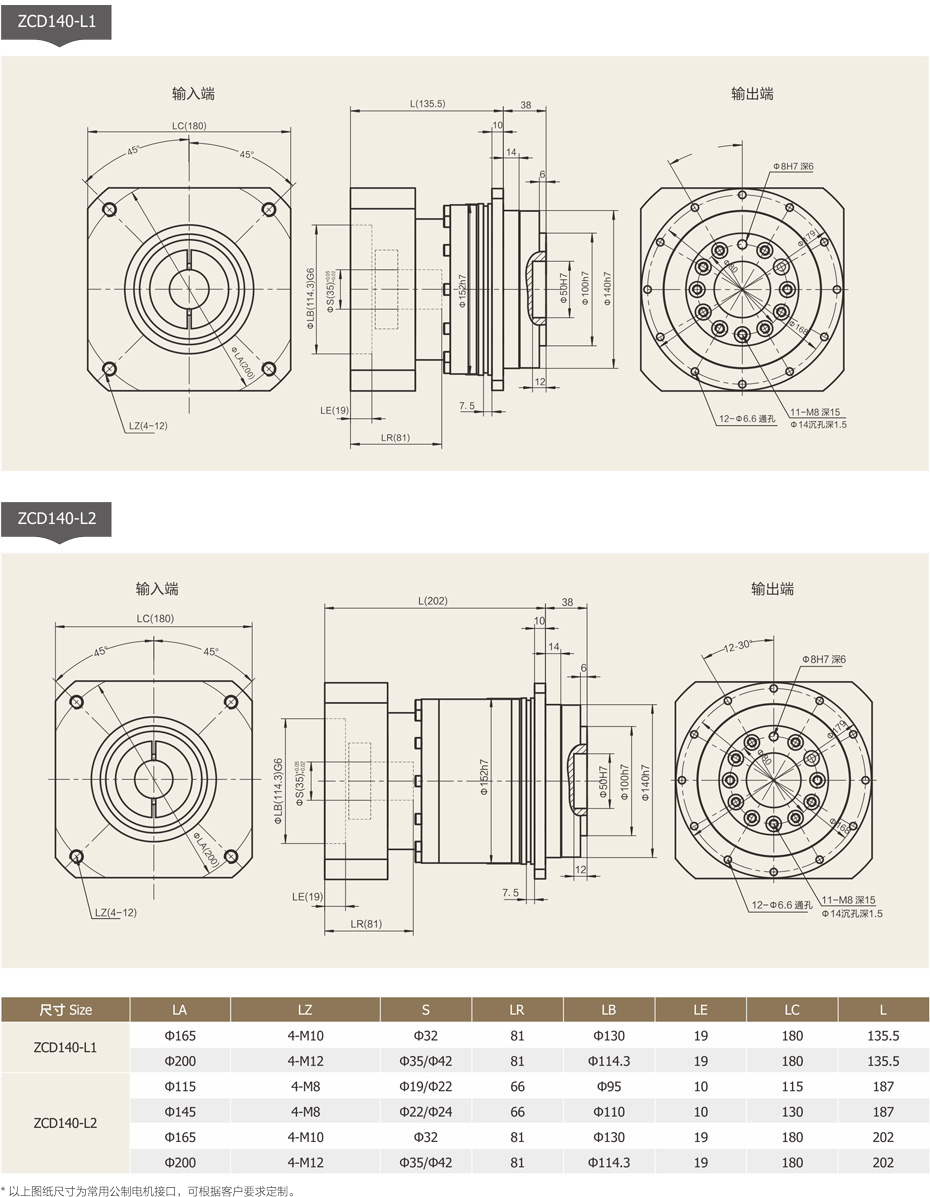

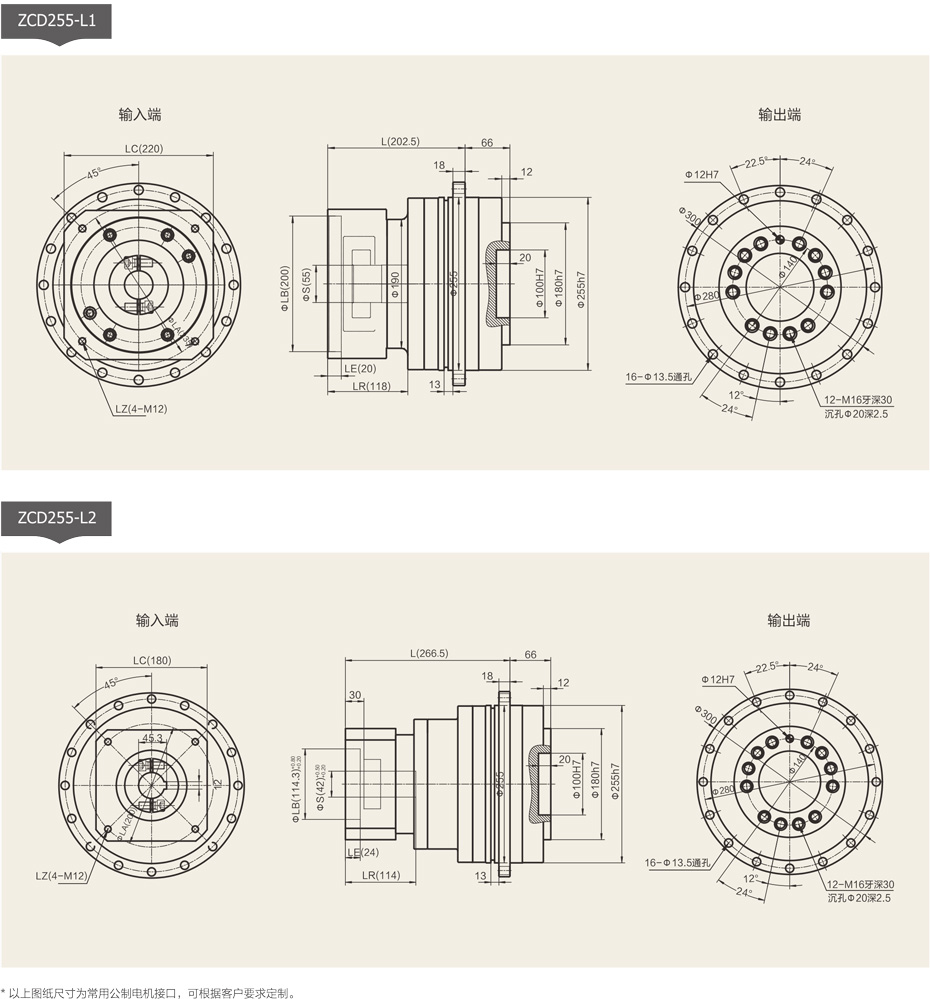

Dimension

Download

ZCD60-L1(8X35-38.1-66.6-M4)-Model.pdf ZCD60-L1(14X35-50-70-M4)-Model.pdf ZCD90-L1 (14X47-73-98.4-M5)-Model.pdf ZCD90-L1 (19X47-70-90-M6)-Model.pdf ZCD120-L1(19X60-70-90-M6)-Model.pdf ZCD140-L1(24X66-110-145-M8)-Model.pdf ZCD200-L1(35X81-114.3-200-M12)开键10-Model.pdf

ZCD Disc Precision Planetary Reducer

Ordering Representation

Parameters

Dimension

Download
